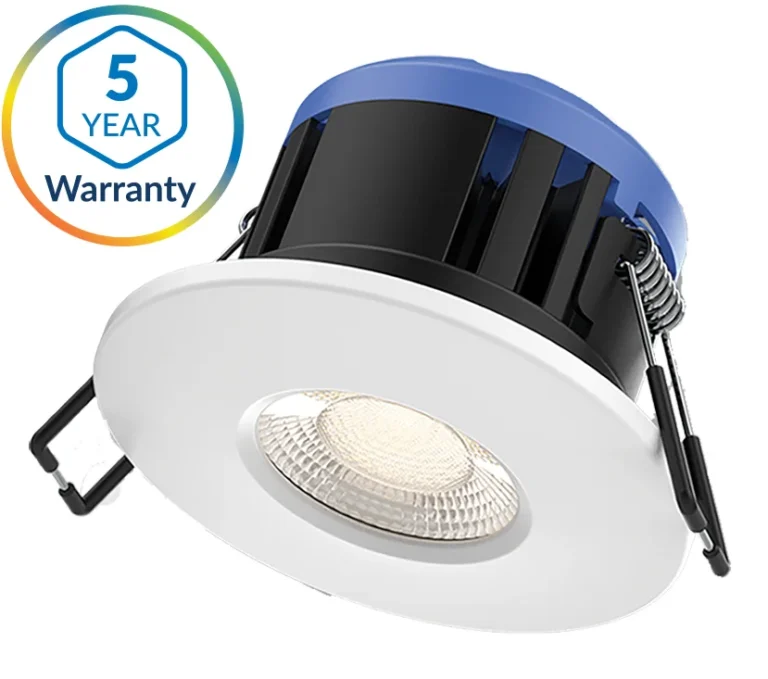

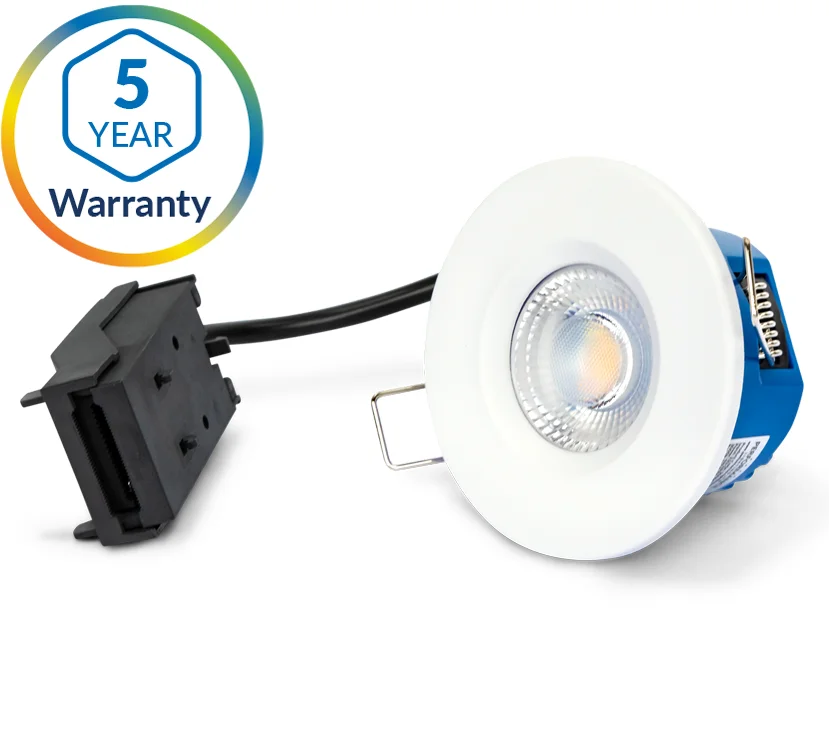

Titan II LED Downlight

Titan-e™ is our 6w downlight, with easy fascia mounted colour changing switch, to change the light colour from 3000K warm white, 4000K cool white and 6000K daylight white.

Product Code 300002
Colour Temperature 3000/4000/6000K
Wattage 6W
Lumens 3000K (570ml)
4000K (650ml)
6000K (610ml)
Size Dim: 86x64mm
Fits cutout: 65-70mm
Datasheet Download Datasheet

Available Options

dali dimmable
1-10 dimmable
push dimmable
emergency

Technical Specification

LED Type/Qty SMD2835/48
Lumen Efficacy 130lm/w
Colour Temperature 3000/4000/6000K
Lumens 570/650/610 lm
UGR Data UGR >19
Colour Index Ra>80
Dimming Options Available 1-10V I DALI
Input Voltage AC200-240V/50Hz
Max Driver Current 800mA
Working Voltage DC27-42V
IP Rating IP65
Fire Rated 30/60/90 min
Operating Temperature -15° - +50°C
Lumen Maintenance L80/B10 @ 50,000hrs
Switching Cycles > 100,000
Power Factor > 0.9
Warranty 5-Years
