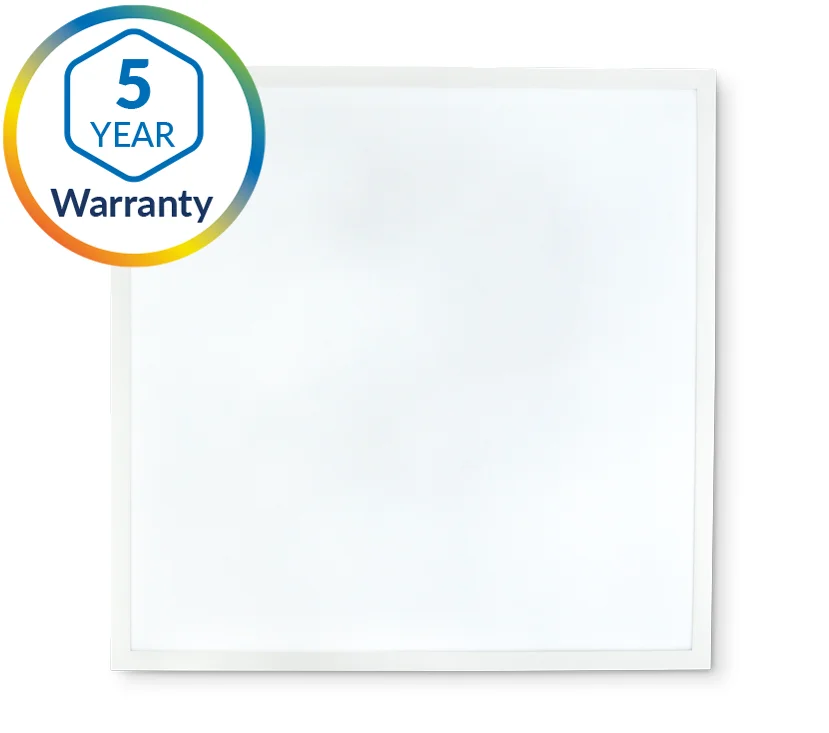

Carida XLG is our top of the range Backlit LED Panel, combining excellent design and great reliability, removing unnecessary loss of light.
| Product Code | 100061 | Colour Temperature | 4000K |
|---|---|
| Wattage | 30W |
| Lumen Output | 130 |
| Size (mm) | 595x595x32 |
| Datasheet | Download Datasheet |
Available Options
Technical Specification
| LED Type/Qty | SMD2835/48 |
| Lumen Efficacy | 130lm/w |
| Colour Temperature | 4000K |
| Luminous Flux | 3900lm |
| UGR Data | UGR >19 |
| Colour Index | Ra>80 |
| Dimming Options Available | 1-10V/DALI/PUSH |
| Input Voltage | AC200-240V/50Hz |
| Max Driver Current | 800mA |
| Working Voltage | DC27-42V |
| IP Rating | IP20 |
| Operating Temperature | -15° - +50°C |
| Lumen Maintenance | L80/B20 @ 50,000hrs |
| Switching Cycles | > 100,000 |
| Power Factor | > 0.9 |
| Warranty | 5-Years |
