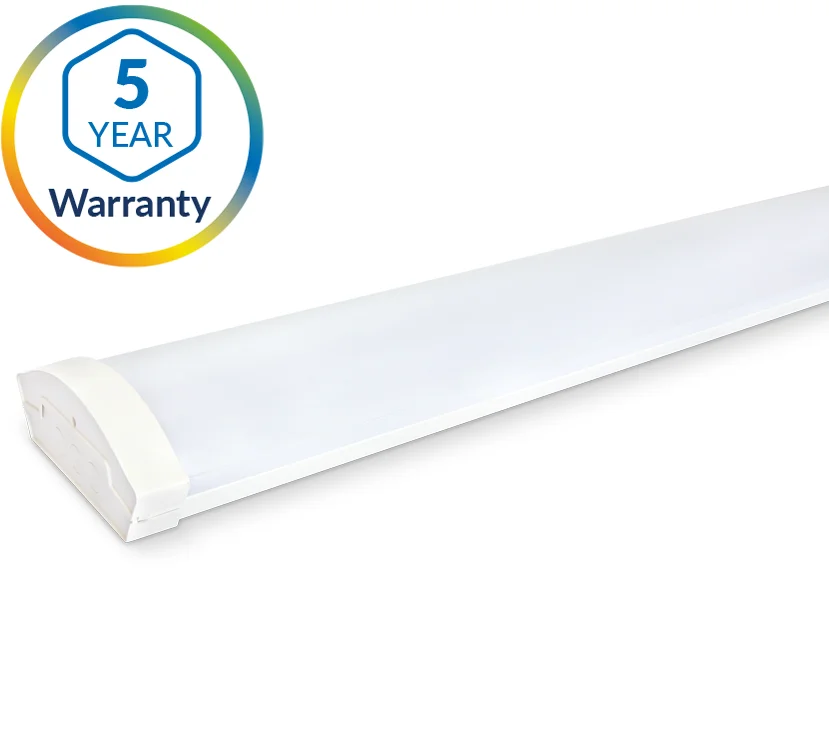

Phoenix Pro is our dual-power, colour-switchable linear LED fitting designed for educational and commercial environments. It delivers excellent performance and reliability, making it ideal for classrooms, corridors, and other learning spaces.
| Product Code |
500202 (Standard) 500202-DD (DALI DIM) 500202-SD (PUSH/SWITCH DIM) 500202-AD (1-10V DIM) |
Colour Temperature | 3000/4000/6000K |
|---|---|
| Wattage | 30W & 58W |
| Lumen Output | 7150/7250/7200 |
| Datasheet | Download Datasheet |
Available Options
Technical Specification
| LED Type/Qty | 196 |
| Lumen Efficacy | 125lm/w |
| Colour Temperature | 3000K/4000K/6000K |
| Colour Index | Ra>80 |
| Dimming Options Available | DALI/1-10V/PUSH |
| Input Voltage | AC220-240V/50Hz |
| Driver output Current (max) | 0.35A |
| Driver output Voltage | 84-200V |
| IP Rating | IP20 |
| Operating Temperature | -20℃～+40℃ |
| Lumen Maintenance | L80B10 |
| Switching Cycles | 25000 |
| Power Factor | > 0.9 |
| Warranty | 5-Years |
| Beam Angle | 120° |
| Energy Rating | D |
| Overall Dimensions | 1490x200x81mm |
| Product Height (mm) | 81 |
| Product Weight (Kg) | 2.7 |
| IK Rating | IK06 |
| Driver Manufactuer | Tridonic |
| EMC Compliant (EN55015) | YES |
