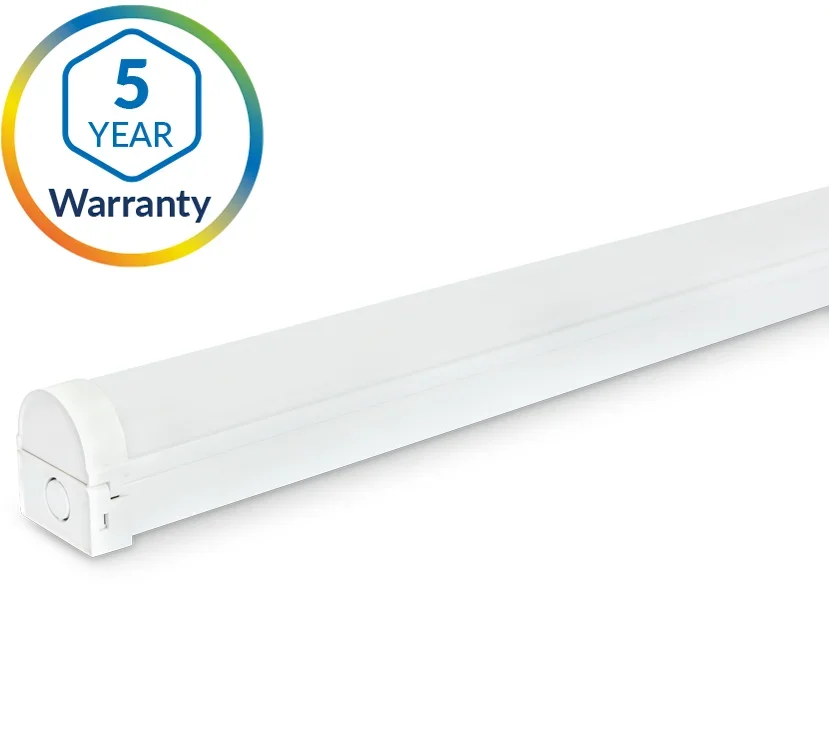

Our Leda range has been upgraded to 4 Power Selectable outputs, it helps reduce the number of SKUs required – making it a stock-friendly solution for wholesalers and contractors alike.
| Product Code |
500005 (Standard) 500065 (Emergency) 500005-DD (DALI DIM) 500005-SD (PUSH/SWITCH DIM) 500005-AD (1-10V DIM) |
Colour Temperature | 3000/4000/6000K |
|---|---|
| Wattage | 52W |
| Lumen Output | 6500/7020/6760 |
| 4 Power Selectable | 32W/41W/52W/58W |
| Datasheet | Download Datasheet |
Available Options
Technical Specification
| LED Type/Qty | 70 |
| Lumen Efficacy | 150 |
| Colour Temperature | 3000K/4000K/6000K |
| Colour Index | Ra>80 |
| Dimming Options Available | DALI/1-10V/PUSH |
| Input Voltage | AC220-240V/50Hz |
| Driver output Current (max) | 0.35A |
| Driver output Voltage | 84-200V |
| IP Rating | IP20 |
| Operating Temperature | -20℃～+40℃ |
| Lumen Maintenance | L80B10 |
| Switching Cycles | 25000 |
| Power Factor | >0.9 |
| Warranty | 5-Years |
| IK Rating | IK06 |
| Beam Angle | 120° |
| Energy Rating Range | C |
| Overall Dimensions | 1462x62x74mm |
| Height (mm) | 74mm |
| Product Weight (Kg) | 1.36 |
| Driver Manufactuer | Tridonic |
| EMC Compliant (EN55015) | YES |
